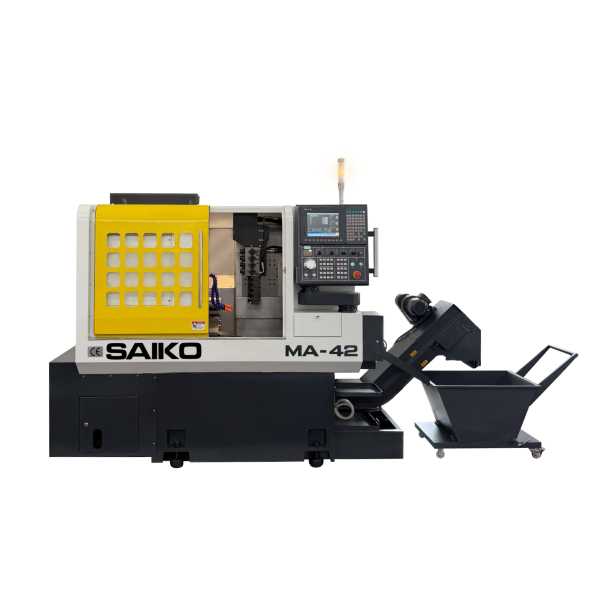

SAIKO MA-42 CNC Production Lathe

SAIKO MA-42 CNC Production Lathe

In Stock

CNC Lathe with Syntec 22TB Control

7.5kW Spindle Motor
6000RPM Spindle with Hydraulic Disk Brake
173E Collet Chuck and 8 inch 3-Jaw Chuck
8 Live Tools (ER20) – Max.3000RPM (2kW Delta)
5 Turning & 4 Boring Tools
Collet set
Parts Catcher and Conveyor.
Oil Cooler

Travel:
X Axis: 200mm
Y Axis: 385mm
Z Axis: 215mm

Categories: CNC Lathes, CNC Turning and Milling Complex Lathe, New Machinery Tags: CNC, lathe

Description

Description

Included Extras

Standard Features:

Syntec 22TB Control
10,4″ Display Screen
8″ 3-Jaw Chuck with set of Hard/Soft Jaws
173E Collet Chuck Set
Bar Feeder Interface
Parts Catcher
Parts Conveyor
Chip Conveyor
Full Protective Cover
Spindle Hydraulic Disk Brake
Transformer
MPG Hand Wheel
Tri-colour Warning Light
Coolant Hoses

Specifications	MA-42
Max. Turning Diameter	Ø130mm
Max. Turning Length	160mm
X-Axis Travel	200mm
Y-Axis Travel	385mm
Z-Axis Travel	215mm
Spindle Bore	Ø56mm
Spindle Bar Capacity	Ø42mm
Spindle Nose	A2-5
Spindle Speed	6000rpm
Spindle Power	7.5kW
Fixed Tools	5 Turning, 4 Inner Dia.
Turning Tool Size	20mm
Boring Bar Diameter	Ø25mm
Live Tools	8 (ER20)
Live Tool Power	2kW (Delta) – Max. 3000rpm
Servo Motor X-Axis	1kW (Delta)
Servo Motor Y-Axis	1kW (Delta)
Servo Motor Z-Axis	1kW (Delta)
Rapid Traverse	15-24m/min
Coolant Tank Capacity	140L
Coolant Pump	1/4HP
Hydraulic Pump	1HP
Machine Dimensions	2500 x 1900 x 1800mm
Machine Weight	3000kg
