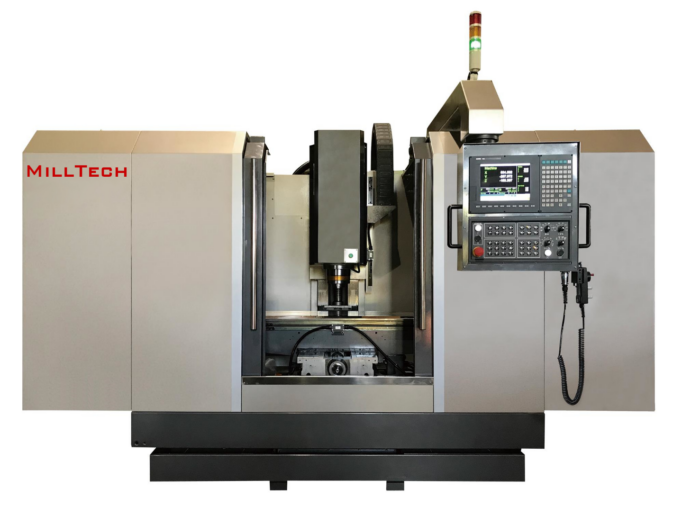

MillTech VMC-1050A Vertical Machining Center

Product Introduction

This machine contains the following:

  • 3-axis (X, Y, Z-axis) vertical machining center,
  • Uses ball screws along with linear bearings to provide high precision,
  • Wide span table suitable for heavy loads,
  • Compact structure while allowing for reasonable work space,
  • The spindle is servo motor driven by a belt.

Product Function

  • Various shaped work pieces can be secured to the work table such as discs, boards, housings, cams, and molds – all at once.
  • Used for drilling, milling, boring, expanding, reaming, rigid tapping, etc.
  • This VMC is used for the production of small and medium batch products and can satisfy the processing of complex and high-precision parts.
  • A 4th-Axis rotary chuck can be equipped (not a standard accessory – please kindly let us know if you require this).

Description

Standard Features

  • Multiple control brands available upon request;
  • Spindle servo motor: maximum speed 8000rpm, power 7.5Kw, torque 35.8Nm;
  • Rigid tapping function;
  • Centralized automatic oil lubrication;
  • External cooling system and water tank;
  • Simple oil and water separation device;
  • Fully enclosed covers;

Specifications

Itinerary
Travel:
X axis:1000mm
Y axis:500mm
Z axis:500mm
Spindle face to table distance: 105-605mm
Distance from spindle centre to main column guide surface: 550mm
Worktable
Working table size: 1000×500mm
Weight capacity: 600kg
T-slot width: 18
T-slot number:3
Main shaft
Taper specifications:BT40
Spindle speed: 8000
Spindle motor: 7.5kw
Rapid displacement
X, Y axis rapid movement rate: 24000mm
Z axis rapid movement rate: 18000mm
Cutting feed rate: 1-10000mm/min
Accuracy
Positioning accuracy: ±0.01mm
Repeatability: ±0.003/300mm
CNC control system
The system has complete and reliable interlocking, safety protection and fault diagnosis alarms, etc. It is equipped with RS232 standard and network cable communication interface, can be programmed and stored with the computer, and can achieve DNC processing (different depending on the system).
MotorX/Y/Z axis AC servo motor (Torque Nm 15/15/15)
Power supply device
Power form three-phase AC 380V±10% 50Hz±10%
Electrical capacity15KVA
Cooling system
Water tank capacity:200L
Cooling pump power:450W
Cooling pump flow:2.5m3/h
Rated head: 23m
Gas source
Use air pressure: 0.6MPa
Machine dimensions and weight
Machine dimensions (depth × left and right × height):2750×2300×2300mm
Net weight of the machine tool: 5300Kg
