Oval Duct Forming Machine – 3100mm

  • Aluminium die to avoid jamming.
  • Tray: Aluminium cast made – much lighter.

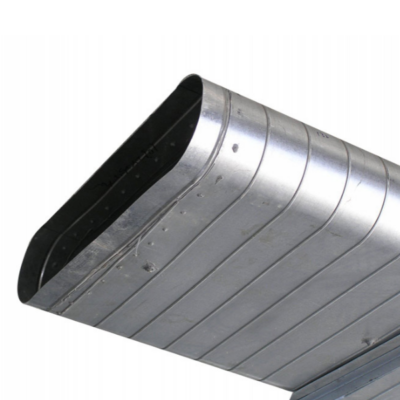

The Oval Duct Forming Machine 3100 is designed to stretch spiral ducts into an oval shape using a custom-made mold. The machine is equipped with a hydraulic press to ensure there is enough force for tube formation.

  • Oval Duct Forming Machine 3100

Thickness Range 0.4-1.2mm
Maximum Duct Length 3100mm
Minimum Diameter 330mm
Die Specification(Mm) Φ150, Φ200, Φ250, Φ300, Φ350, Φ400, Φ450, Φ500
Tray Specification 50, 100, 200, 300, 400, 500, 600mm
Power 18.5KW
Weight 2720kg
Dimension 5630mm×1250mm×1130mm
