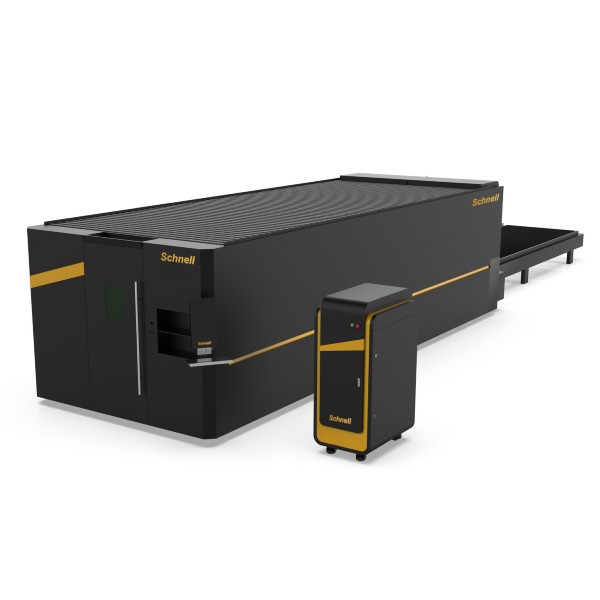

Schnell 2040CE Fiber Laser Series

Auto Focus Laser Cutting Head

• Without having to manually adjust focal length, the efficiency and precision of machine are significantly improved
• -10 ~ +10mm Adjustment range

Segmented smoke exhaust

• Full coverage super-extraction
• Making use of the latest tobacco-control technology
• Effectively purifies the smoke and dust, improving purification efficiency and reducing lens contamination risks

IPAD Design screen

• Vertical display screen with high resolution and high contrast
• This design screen has a very low power consumption
• Intelligent touch control and high definition tempered glass control

Exclusive craftsmanship

• This slim and lightweight design can be used for carbon steel plates up to 60mm thick, and stainless steel up to 50mm thick
• Highly stable and accurate, this laser significantly boosts the efficiency of the entire cutting process

Plate Welding Heavy Work Bed

• Annealed and Heat treated
• Suited for ultra-high power laser operation, as high as 10 000 watts
• Reinforcement ribs are arranged inside the bed to increase it’s strength and tensile resistance

20000W IPG Fiber Laser Source

• The IPG YLS-CUT Series has incredibly powerful cutting abilities – cutting stainless steel, aluminium and other metal materials
• Cutting up to 40mm thick materials
• This laser source has a service life of up 100 000 hours / 11.5 years
• Excellent beam quality, finer cutting lines.
• Fully enclosed with temperature regulation for stable and effective operation

3rd Generation Aviation Aluminium Gantry

• Age treated
• Exceptionally strong, it’s strength reaching 6061 T6
• Made from incredibly tough, lightweight, corrosion resistant, anti-oxidation and low density Aviation Aluminium
• Manufactured using aerospace standards

Design

• Safe and pollution-free:
  • fully enclosed design
  • European CE Standard laser protective glass observation window
  • Smoke produced by cutting can be filtered inside the laser, making it non-polluting and environmentally friendly
• Transmission and accuracy
  • Equipped with a Japanese Yaskawa motor, a Taiwan Shangyin rack and a French motor reducer
• Surveillance:
  • During the processing each blind spot area can be monitored at any time
  • The high-definition intelligent monitoring system can be used to control the cutting process
