Heavy Duty CNC Lathe
- Swing Over Bed: 1170 mm ~ 1470 mm
- Distance Between Center: 4200 mm ~ 8200 mm
- Bed Width: 1120 mm
- Full Bed Width: 1280 mm
- Spindle Bore: 153 mm ~ 310 mm

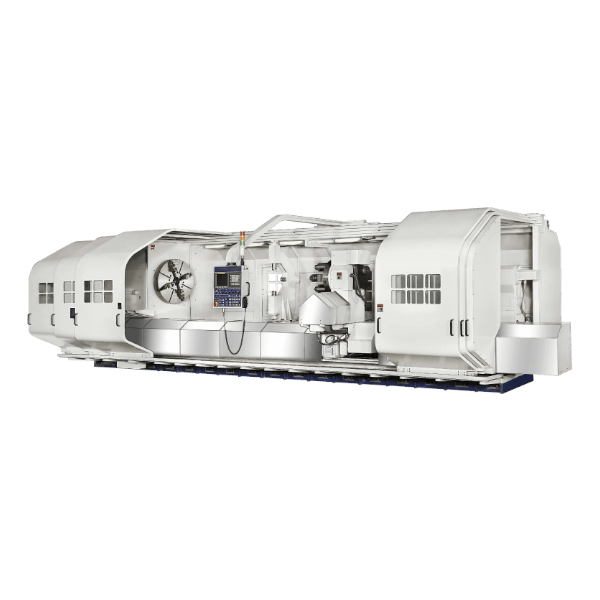

Maxi Heavy-Duty CNC Lathe FBL Ø1170 – 1470mm
In Stock
Description
Standard Accessories
- Fanuc OiTF Control
- Coolant System
- 4 Way Tool Post
- Hydraulic System
- Lubrication System
- Center and Center Sleeve
- Leveling Bolts and Nuts
- Tool box + Tools
- CNC Controller Manual
Specifications
| MODEL / ITEM | FBL 1170 |
|---|---|
| Capacity | |
| Swing over bed | 1170 mm (46") |
| Swing over cross slide | 780 mm (31") |
| Distance between center | 4200 mm , 5200 mm , 6200 mm , 7200 mm , 8200 mm , 9200 mm , 10200 mm , 11200 mm , 12200 mm , 13200 mm , 14200 mm , 15200 mm |
| Headstock | |
| Spindle nose | A2-15 / *A2-20 |
| Spindle bore | *406 mm (16") |
| Range of spindle speed | 1-350 rpm |
| No. of spindle speed | 4 |
| Carriage | |
| Cross slide travel (X-axis) | 610 mm (24") |
| Longitudinal travel (Z-axis) | 4200 mm , 5200 mm , 6200 mm , 7200 mm , 8200 mm , 9200 mm , 10200 mm , 11200 mm , 12200 mm , 13200 mm , 14200 mm , 15200 mm |
| AC servo motor | X : 4 KW (5.4 HP) Z : 7 KW (9.4 HP) |
| Rapid feed | X: 6 m/min (236 ipm) Z: 6 m/min (236 ipm) |
| Cutting feed rate | X/ Z : 0.001-500 mm/rev (0.0004"-20"/rev) |
| Turret | |
| Tool station (Random) available | V8 / *H4 |
| Size of external turning | 32x32 mm (1-1/4"x1-1/4") |
| Boring bar dia. | Ø 60 mm (2.4") |
| Tailstock | |
| Quill dia | Ø 200 mm (7.9") |
| Quill stroke | 250 mm (10") |
| Taper of center | MT NO.6 |
| Motor | |
| Main spindle (continuous) | AC 37 KW (50 HP) |
| Main spindle (30 min. rating) | AC 45 KW (60 HP) |
| Hydraulic pump | 3.75 KW (5 HP) |
| Coolant pump | 0.75 KW (1 HP) |
| Bed | |
| Width of bed | 1120 mm (44") |
| Width of way | 1280 mm (50") |
| Control | |
| CNC control unit available | FANUC, FAGOR, SIEMENS |
| MODEL / ITEM | FBL 1320 |
|---|---|
| Capacity | |
| Swing over bed | 1320 mm (52") |
| Swing over cross slide | 940 mm (37") |
| Distance between center | 4200 mm , 5200 mm , 6200 mm , 7200 mm , 8200 mm , 9200 mm , 10200 mm , 11200 mm , 12200 mm , 13200 mm , 14200 mm , 15200 mm |
| Headstock | |
| Spindle nose | A2-15 / *A2-20 |
| Spindle bore | *532 mm (21") |
| Range of spindle speed | 1-300 rpm |
| No. of spindle speed | 4 |
| Carriage | |
| Cross slide travel (X-axis) | 610 mm (24") |
| Longitudinal travel (Z-axis) | 4200 mm , 5200 mm , 6200 mm , 7200 mm , 8200 mm , 9200 mm , 10200 mm , 11200 mm , 12200 mm , 13200 mm , 14200 mm , 15200 mm |
| AC servo motor | X : 4 KW (5.4 HP) Z : 7 KW (9.4 HP) |
| Rapid feed | X: 6 m/min (236 ipm) Z: 6 m/min (236 ipm) |
| Cutting feed rate | X/ Z : 0.001-500 mm/rev (0.0004"-20"/rev) |
| Turret | |
| Tool station (Random) available | V8 / *H4 |
| Size of external turning | 32x32 mm (1-1/4"x1-1/4") |
| Boring bar dia. | Ø 60 mm (2.4") |
| Tailstock | |
| Quill dia | Ø 200 mm (7.9") |
| Quill stroke | 250 mm (10") |
| Taper of center | MT NO.6 |
| Motor | |
| Main spindle (continuous) | AC 37 KW (50 HP) |
| Main spindle (30 min. rating) | AC 45 KW (60 HP) |
| Hydraulic pump | 3.75 KW (5 HP) |
| Coolant pump | 0.75 KW (1 HP) |
| Bed | |
| Width of bed | 1120 mm (44") |
| Width of way | 1280 mm (50") |
| Control | |
| CNC control unit available | FANUC, FAGOR, SIEMENS |
| MODEL / ITEM | FBL 1470 |
|---|---|
| Capacity | |
| Swing over bed | 1470 mm (58") |
| Swing over cross slide | 1100 mm (43") |
| Distance between center | 4200 mm , 5200 mm , 6200 mm , 7200 mm , 8200 mm , 9200 mm , 10200 mm , 11200 mm , 12200 mm , 13200 mm , 14200 mm , 15200 mm |
| Headstock | |
| Spindle nose | A2-15 / *A2-20 |
| Spindle bore | *609 mm (24") |
| Range of spindle speed | 1-250 rpm |
| No. of spindle speed | 4 |
| Carriage | |
| Cross slide travel (X-axis) | 610 mm (24") |
| Longitudinal travel (Z-axis) | 4200 mm , 5200 mm , 6200 mm , 7200 mm , 8200 mm , 9200 mm , 10200 mm , 11200 mm , 12200 mm , 13200 mm , 14200 mm , 15200 mm |
| AC servo motor | X : 4 KW (5.4 HP) Z : 7 KW (9.4 HP) |
| Rapid feed | X: 6 m/min (236 ipm) Z: 6 m/min (236 ipm) |
| Cutting feed rate | X/ Z : 0.001-500 mm/rev (0.0004"-20"/rev) |
| Turret | |
| Tool station (Random) available | V8 / *H4 |
| Size of external turning | 32x32 mm (1-1/4"x1-1/4") |
| Boring bar dia. | Ø 60 mm (2.4") |
| Tailstock | |
| Quill dia | Ø 200 mm (7.9") |
| Quill stroke | 250 mm (10") |
| Taper of center | MT NO.6 |
| Motor | |
| Main spindle (continuous) | AC 37 KW (50 HP) |
| Main spindle (30 min. rating) | AC 45 KW (60 HP) |
| Hydraulic pump | 3.75 KW (5 HP) |
| Coolant pump | 0.75 KW (1 HP) |
| Bed | |
| Width of bed | 1120 mm (44") |
| Width of way | 1280 mm (50") |
| Control | |
| CNC control unit available | FANUC, FAGOR, SIEMENS |
