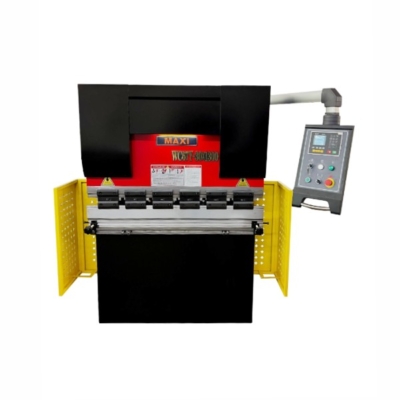

Maxi Hydraulic Press Brake – 30T x 1300mm

Hydraulic Press Brake With E21 Control

The frame is welded with steel plates and treated to relieve stress which helps ensure bending precision is maintained.
Hydraulic top-drive, stepless pressure adjustment and high quality sealing rings to ensure machine reliability.
The stroke and distance of the backgauge is adjusted by motor and is displayed by digital meters.
Inch, single and continuous operation modes
A fence surrounds the back of the machine to ensure operation safety.

Categories: New Machinery, Press Brake, Sheet Metal Working

Description

Description

Included – Estun E21 Control

The Estun E21 control provides the operator with complete software control of the machine. It improves productivity and work accuracy. This control still remains simple enough for even unskilled workers to comfortably use.

Specifications

Specifications		Unit
nominal force		Kn	300
working table length		mm	1320
distance between frames		mm	1030
throat depth		mm	200
ram travel		mm	120
max open height between table and ram		mm	320
ram travel adjustment		mm	60
ram travel speed	no-load cyclic index	mm/s	36
	working speed	mm/s	10
	return speed	mm/s	80
main motor	model		Y112M-6 B35
	horse power	Kw	5.5
	speed	r/min	1440
ram adjustment	model		YS7114-4 B3
	horse power	Kw	0.25
	speed	r/min	1440
back gauge adjustment	model		Y802-6 B3
	horse power	Kw	0.55
	speed	r/min	960
gear pump	pressure	Mpa	32
	flow	L/min	10
	model		NT-G10F
max working pressure of hydraulic system		Mpa	20
overall dimensions	length	mm	1830
	width	mm	910
	height	mm	1500
G.W.		Kg	2200
