- The fast cutting results in smooth edges.
- Changeable forming compartment for materials with different thickness.
- Aluminium forming heads are lighter and more precise compared to iron ones.
- Duct beader to strengthen duct.

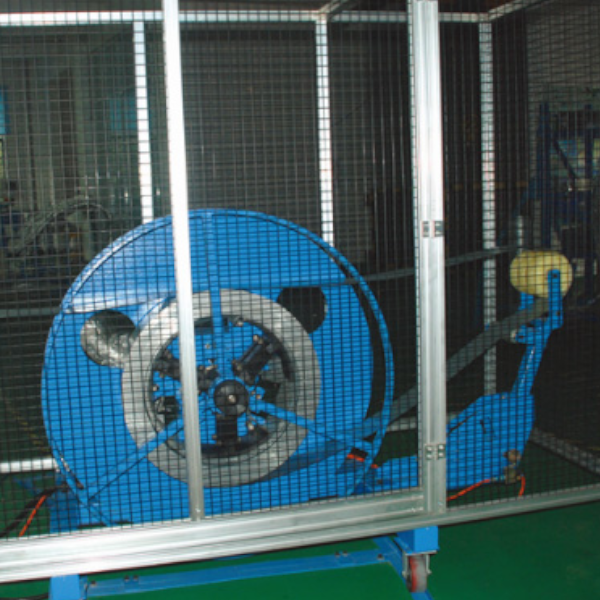

Spiral Tubeformer 1602
In Stock
Description

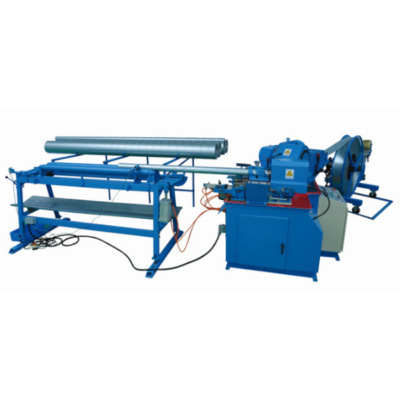

The Spiral Tubeformer 1602 spiral duct forming machine forms ducts with a diameter range of 80 to 160mm, and a maximum worktable thickness of 1.3mm for galvanized sheets, 0.8mm for stainless steel, and 1.3mm for aluminium sheets. The machine can also be programmed to cut to the exact length for precision trimming, thereby increasing production efficiency.
Spiral Tubeformer 1602 Spiral Duct Forming Machine Specifications:
| Specifications | |
| Diameter Range | Φ80-Φ1600mm |
| Thickness Of Strip | 137mm(thickness of Strip:0.4-0.6mm/0.7-1.0mm); 140mm(thickness of Strip:1.1-1.3mm) |
| Strip Speed | Max.60m/min (depend on the materials) |
| Motor Power | 11Kw |
| Coolant Power | 0.25Kw |
| Cutting Power | 4Kw |
| Weight | 2900Kg |
| Dimension | 2000*1700*1450(main machine) |
| 2000*1100*1300 (decoiler) | |
| 2450*1200*1200(run-out table) | |
| Cutting | the patented flying slitter |
| Corrugations | either one or two beads |
| Lock seam | outside lock, inside lock as request |
