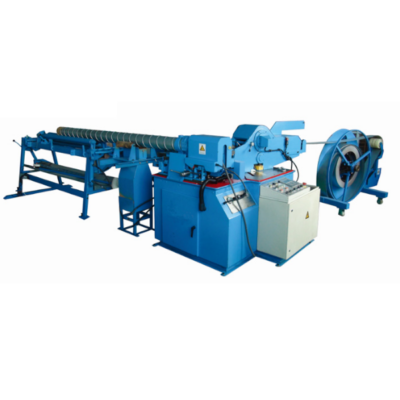

Spiral Tubeformer 2020 Features:
The Spiral Tubeformer 2020 duct forming machine is designed to work with thicker materials to make ducts with a larger diameter and do so at higher production speeds with higher precision.
The production diameter ranges between 80 to 2500mm, and as the spiral tube former is equipped with a plasma cutter, it is able to cut through material with a thickness of 2mm or higher. This equipment can also be programmed to cut the exact length for precision trimming.
| Specifications: | |
| Diameter Range | Φ80-Φ2500mm |
| Thickness Of Strip | Galvanized Steel Sheet 0.4-2.0mm;
Stainless Steel 0.4-1.2mm; Aluminium 0.4-2.0mm |
| Width Of Strip | 137mm 0.4-1.0mm |
| 140mm 1.1-1.3mm | |
| 150mm 1.4-2.0mm | |
| Motor Power | 22kw |
| Weight | 3200kg |
| Dimension | 2100mm×1800mm×1500mm(Main machine) 2000mm×1100mm×1300mm(Decoiler) 2450mm×1200mm×1200mm(run-out table) |
| Cutting | plasma cut and flying slitter |
