High quality, durable bandsaw made in Turkey.
Please enquire for a full quotation.

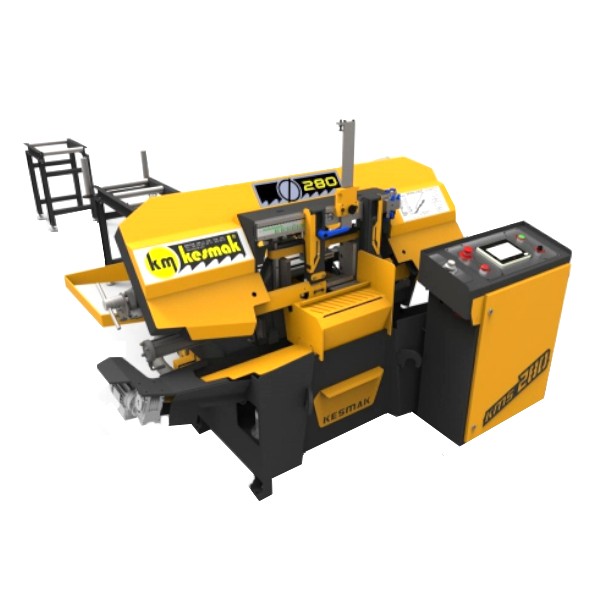

Kesmak KMS 280 Servo Drive Bandsaw
In Stock
Description
| Specifications | KMS 280 | |||
|---|---|---|---|---|
| Capacity (90°) |
|
|||
| Bundle Cutting Capacity (Max) |
|
|||
| Bundle Cutting Capacity (Min) |
|
|||
| Main Motor Power | 1.5kW | |||
| Hydraulic Motor Power | 0.25kW | |||
| Coolant Motor | 0.12kW | |||
| Feeding Motor | 0.18kW | |||
| Conveyor Motor | 1.1kW | |||
| Coolant Tank Capacity | 40L | |||
| Hydraulic Tank Capacity | 25L | |||
| Blade Size | 0.9 x 27 x 3660mm | |||
| Feeding Height | 770mm | |||
| Max. Vice Opening | 360mm | |||
| Min. Vice Closing | 0mm | |||
| Vice Height | 170mm | |||
| Sliding Length | 600mm | |||
| Rolled Table Width | 370mm | |||
| Dimensions (H x W x L) | 1350 X 2250 X 1860mm | |||
| Weight | 1200kg |
| Specifications | KMS 280 |
|---|---|
| Swarf Brush & Conveyor | Included |
| Inverter | Included |
| Vice | Hydraulic |
| Blade Tension | Hydraulic |
| Stop System | Blade Breakage Switch |
| Roller Table | 1200mm Multi Roller Table |
| Double Roller Table | 600mm Rollers |
| Lubrication System | Ball Screw |
| Servo Feeder | Double Vice |
| Touch Screen Control | PLC (Programmable Logic Controller) |
| Diameter Switch | Included |
| LED Lighting | Included |
