Swing Over Bed : 1800 mm ~ 2000 mm
Distance Between Center : 1500 mm ~ 8000 mm
Bed Width : 1120 mm
Spindle Bore : 153 mm ~ 532 mm

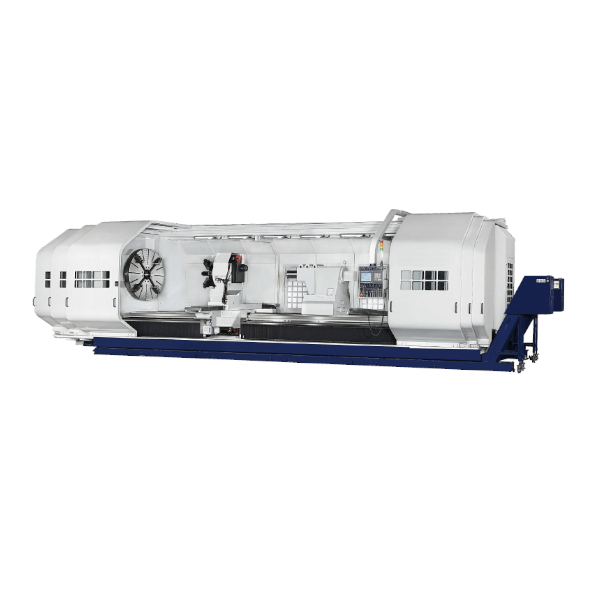

Maxi Heavy-Duty CNC Lathe FBL Ø1800 – 2000mm
In Stock
Description
Standard Accessories
- Fanuc OiTF Control
- Coolant System
- 4 Way Tool Post
- Hydraulic System
- Lubrication System
- Center and Center Sleeve
- Leveling Bolts and Nuts
- Tool box + Tools
- CNC Controller Manual
Optional Accessories
- Double Turret
- H4 Tool Turret
- H6 Tool Turret
- Self-Centering Steady Rest
- Big Spindle Bore
- 3-Jaw Hydraulic Chuck
- 3-Jaw Air Chuck
- Double Chuck
- C-AXIS (Live Tooling)
- 4-Jaw Independent Chuck
- 4-Jaw Face Chuck
- Boring Attachment
- Hydraulic Tailstock
- Chip Conveyor
- Fagor Control
- Siemens Control
- H4 Special Turret
- Roller Steady Rest
Specifications
| MODEL / ITEM | FBL 71 | FBL 75 | FBL 79 | |||
|---|---|---|---|---|---|---|
| Capacity | ||||||
| Swing over bed | 1800 mm (71") | 1900 mm (75") | 2000 mm (79") | |||
| Swing over cross slide | 1300 mm (51") | 1400 mm (55") | 1500 mm (59") | |||
| Swing over gap | *2100 mm (82") | *2200 mm (86") | *2300 mm (90") | |||
| Width of gap | *750 mm (30") | |||||
| Distance between center | 1500 mm - 15000 mm | |||||
| Headstock | ||||||
| Spindle nose | A2-15 / *A2-20, A2-28, special | |||||
| Spindle bore | 153 mm (6") | *230 mm (9") | *310 mm (12") | *609 mm (24") | *406 mm (16") | *532 mm (21") |
| Range of spindle speed | 1-400 rpm | 1-350 rpm | 1-300 rpm | 1-150 rpm | 1-250 rpm | 1-200 rpm |
| No. of spindle speed | 4 | 2 | ||||
| Carriage | ||||||
| Cross slide travel (X-axis) | 1070 mm (42") | |||||
| Longitudinal travel (Z-axis) | 1600 mm - 15000 mm | |||||
| AC servo motor | X : 4 KW (5.4 HP) Z : 9 KW (12.1 HP) | |||||
| Rapid feed | X: 6 m/min (236 ipm) Z: 6 m/min (236 ipm) | |||||
| Cutting feed rate | X / Z : 0.001-500 mm/rev (0.0004"-20"/rev) | |||||
| Turret | ||||||
| Tool station (Random) available | H4 / *H6 , V8 | |||||
| Size of external turning | 32x32 mm (1-1/4"x1-1/4") | |||||
| Boring bar dia. | Ø 60 mm (2.3") | |||||
| Tailstock | ||||||
| Quill dia | Ø 280 mm (11") | |||||
| Quill stroke | 250 mm (10") | |||||
| Taper of center | MT NO.7 | |||||
| Motor | ||||||
| Main spindle (continuous) | AC 37 KW (50 HP) | |||||
| Main spindle (30 min. rating) | AC 45 KW (60 HP) | |||||
| Hydraulic pump | 3.75 KW (5 HP) | |||||
| Coolant pump | 0.75 KW (1 HP) | |||||
| Bed | ||||||
| Width of bed | 1120 mm (44") | |||||
| Control | ||||||
| CNC control unit available | FANUC, FAGOR, SIEMENS |
